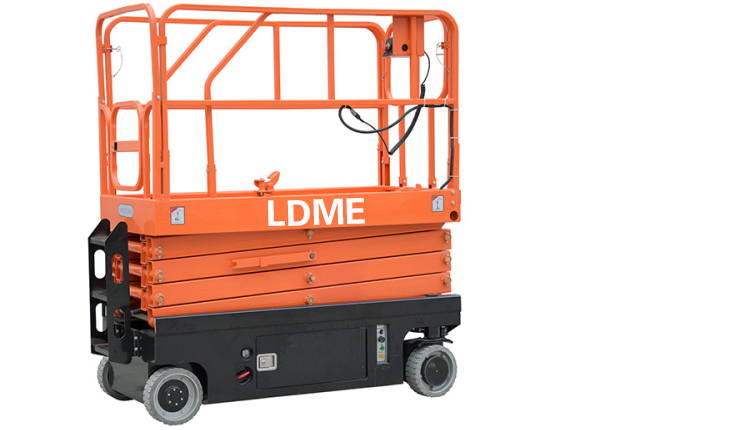

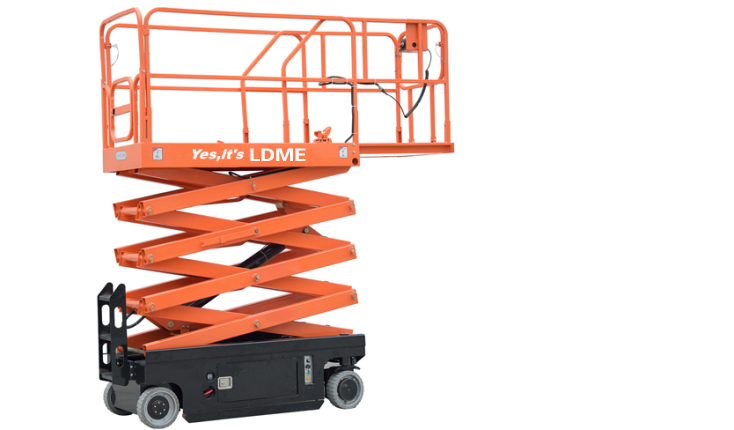

產品名稱：VB自行走剪式高空作業車
| 型號規格Model Number | VAWP0139 | VAWP0140 | |
| 工作高度Working height | mm | 8000 | 10000 |
| 平臺高度PlatfomHeight | mm | 6000 | 8000 |
| 平臺承載Lift Rated Capacity | kg | 300 | 300 |
| 機器最大高度Max.Machine Height | mm | 7100 | 9100 |
| 平臺最低高度MinplatformHgight | mm | 1010 | 1200 |
| 底座離地距離Ground clearance | mm | 90 | 90 |
| 平臺延伸部分載重PlatformExtend Capacity | kg | 100 | 100 |
| 工作平臺尺寸Platform Size | mm | 1880*900 | 1880*900 |
| 平臺延伸長度Platform Extend Length | mm | 900 | 900 |
| 最高駕駛速度（平臺降下）Max.driveSpeed(platformStowed) | Km/h | 3~4 | 3~4 |
| 最高駕駛速度(平臺升起)Max.driveSpee（platformElevated） | Km/h | 0.6-1 | 0.6-1 |
| 最小轉變半徑Minturning Raclius | mm | 2000 | 2000 |
| 最大爬坡能力Max.climbing Capacity | % | 10~15 | 10~15 |
| 驅動輪尺寸DrivingWheelSIze | mm | Φ305*100 | Φ305*100 |
| 萬向輪尺寸Caster Size | in | Φ305*100 | Φ305*100 |
| 驅動電機Driving Motor | v/kw | 2*24/0.5 | 2*24/0.5 |
| 舉升電機Lifting Moror | v/kw | 24/2.2 | 24/2.2 |
| 免維護電池Pothole prote dion system | v/Ah | 2*12/150 | 2*12/150 |
| 充電器Charger | v/a | 24/15 | 24/15 |
| 坑洞保護系統Pothole prote dion system | 機械控制 | 機械控制 | |
| 整機長度Overall Leng gth | mm | 2050 | 2050 |
| 整機寬度Overall height | mm | 900 | 900 |
| 整機高度Overall height | mm | 2150 | 2270 |
| 整機重量Overall netWeight | kg | 1500 |
1700 |
