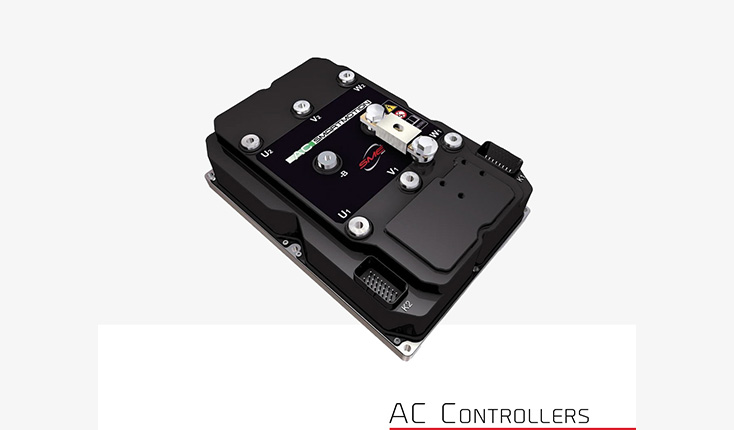

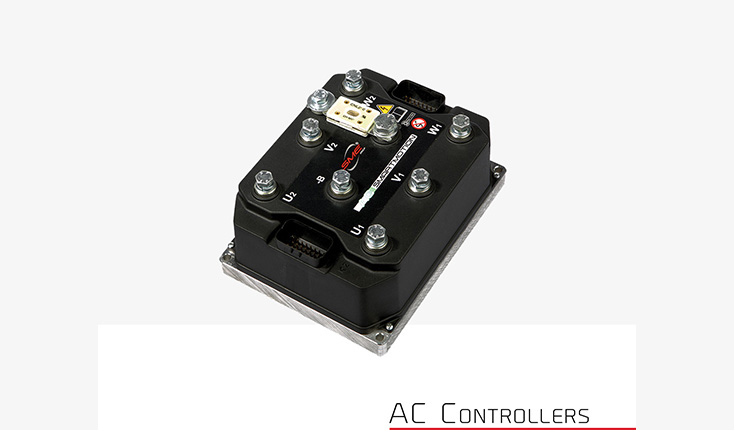

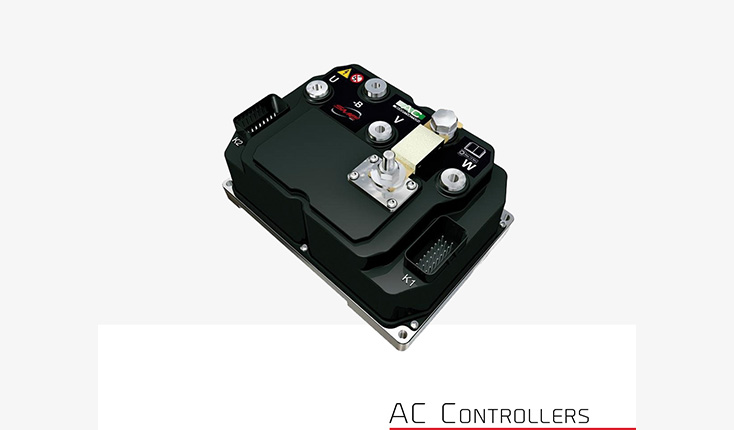

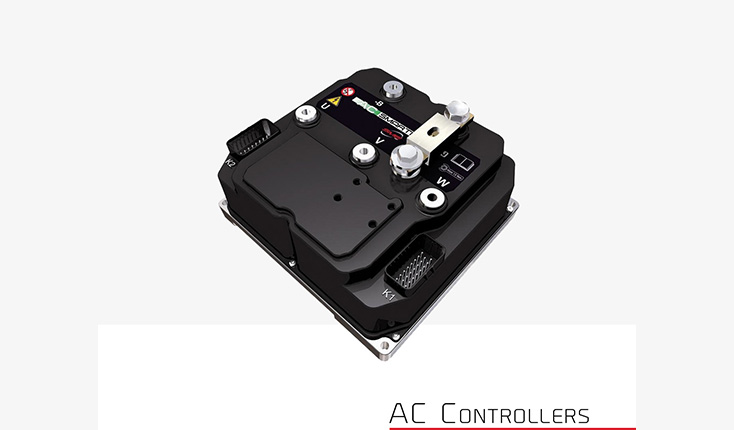

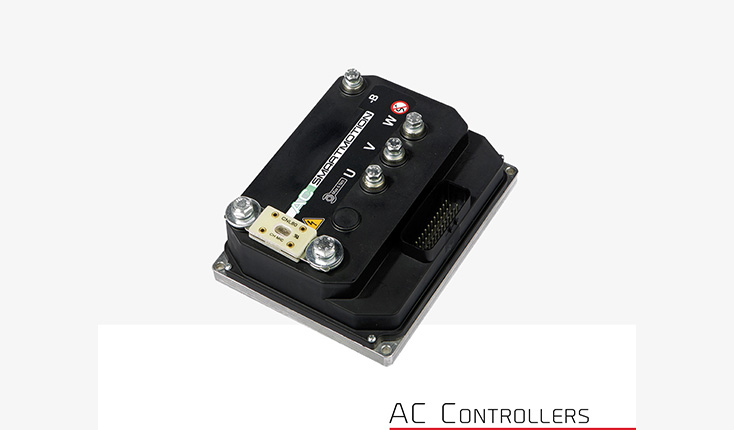

AC MOTOR CONTROLLERS
Equipped with the latest technology in power electronics, SME controllers can drive AC motors in a wide range of applications up to 80kw peak power.
Equipped with the latest technology in power electronics, SME controllers can drive AC motors in a wide range of applications up to 80kw peak power.
- DC supply voltage up to 144V and max current up to 750Amps
- Up to 50% higher power density than direct competitors
- High efficiency and long life power stage – DBC patented power module technology
- Field Oriented Control algorithm optimized for asynchronous and synchronous motors
- Fully customizable I/O
- Easy tuning with TAU Graphical User Interface
- IP65 protection
| Ac Motor Controllers Model | Battery Voltage(V) | Max Current (Arms) | Ac Motor Controllers data sheet download |
|---|---|---|---|
| ACS1 | From 24 V to 80 V | From 75 Arms to 300 Arms | EN IT DE FR |
| ACM1 | From 24 V to 80 V | From 350 Arms to 500 Arms | EN IT DE FR |
| ACL1 | From 36 V to 80 V | From 450 Arms to 750 Arms | EN IT DE FR |
| ACS2 | From 24 V to 48 V | From 300 Arms to 375 Arms | EN IT DE FR |
| ACM2 | From 24 V to 80 V | From 350 Arms to 450 Arms | EN IT DE FR |
| ACX1 | From 24 V to 144 V | From 250 Arms to 750 Arms | COMING SOON |
