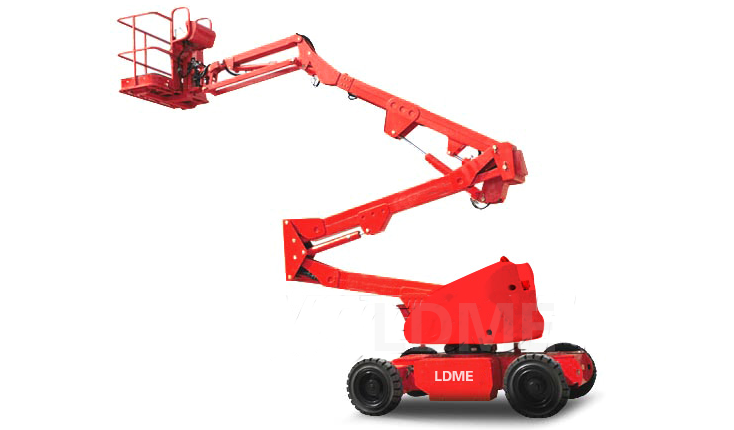

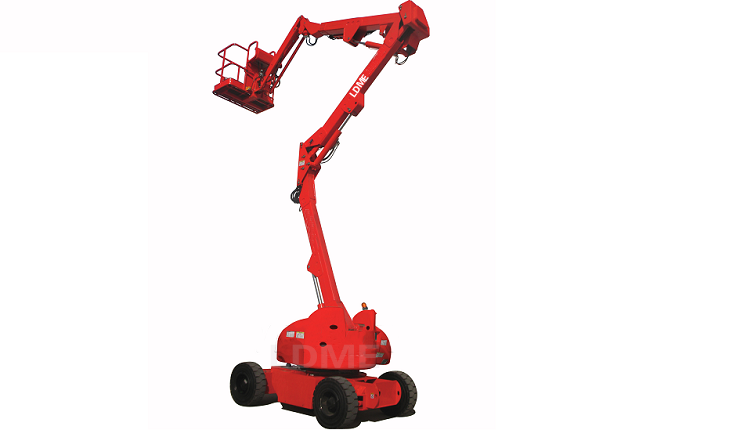

產品名稱：電動曲臂式高空作業平臺
| 產品型號 | VAWPE40A | VAWPE45A | VAWPE51A | VAWPE60A |
| 最大工作高度 | 14.05m | 15.76m | 17.805m | 20m |
| 最大平臺高度 | 12.05m | 13.76m | 15.805m | 18m |
| 最大水平作業半徑 | 6.15m | 7.88m | 10.2m | 10.8m |
| 最大承載能力 | 230kg | 230kg | 230kg | 230kg |
| 最大跨越高度 | 7.6m | 7.6m | 7.6m | 9.2m |

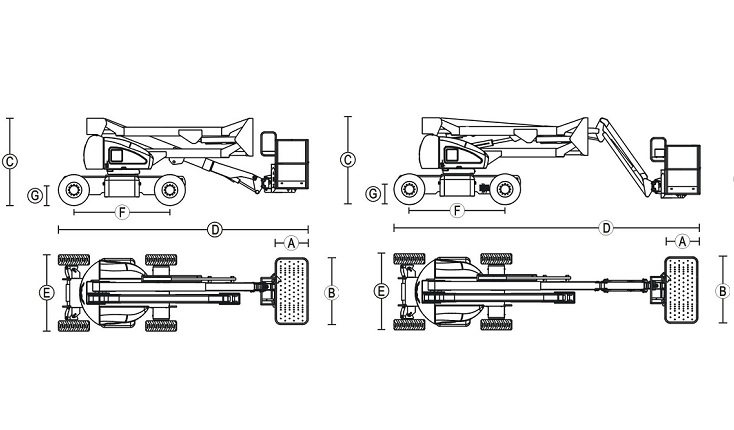

| 收車長度-D | 5.5m | 6.24m | 7.9m | 8.1m |
| 收車寬度-E | 1.75m | 1.75m | 2m | 2.38m |
| 收車高度-C | 2m | 2m | 2m | 2.38m |
| 軸距-F | 2m | 2m | 2.2m | 2.6m |
| 離地間隙-G | 0.2m | 0.2m | 0.2m | 0.3m |
| 平臺尺寸（B*A) | 1.53*0.76m | 1.53*0.76m | 1.53*0.76m | 1.83*0.76m |
| 尾掃 | 0m | 0m | 0m | 0m |
| 最小轉彎半徑 | 4.5m | 4.5m | 4.5m | 4.5m |
| 收攏狀態行走速度 | 5km/h | 5km/h | 5km/h | 5km/h |
| 舉高狀態行走速度 | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| 爬坡度 | 30% | 30% | 30% | 25% |
| 實心輪胎規格 | 250-15 | 250-15 | 250-15 | 33*12-20 |
| 轉臺回轉速度 | 0~1/3rpm | 0~1/3rpm | 0~1/3rpm | 0~1/3rpm |
| 轉臺旋轉 | 360°連續 Continuous | 360°連續 Continuous | 360°連續 Continuous | 360°連續 Continuous |
| 平臺調平 | 自動調平 | 自動調平 | 自動調平 | 自動調平 |
| 平臺旋轉 | ±80° | ±80° | ±80° | ±80° |
| 液壓油箱容積 | 70L | 70L | 70L | 70L |
| 總重量 | 6500kg | 6780kg | 7110kg | 7650kg |
| 控制電壓 | 24V | 24V | 24V | 24V |
| 行走電機 | 6.5*2kw | 6.5*2kw | 6.5*2kw | 6.5*2kw |
| 免維護電池 | 8*6/420V/Ah/TROJAN | 8*6/420V/Ah/TROJAN | 8*6/420V/Ah/TROJAN | 8*6/420V/Ah/TROJAN |
| 充電器 | 48/50 V/A | 48/50 V/A | 48/50 V/A | 48/50 V/A |
|
Item |
VAWPE40A | VAWPE45A | VAWPE51A | VAWPE60A |
| Working height maximum | 14.05m | 15.76m | 17.805m | 20m |
| Platform height maximum | 12.05m | 13.76m | 15.805m | 18m |
| Platform Length | 0.76m | 0.76m | 0.76m | 0.76m |
| Platform Width | 1.53m | 1.53m | 1.53m | 1.53m |
| Height-stowed | 2m | 2m | 2m | 2m |
| Length-stowed | 5.5m | 6.24m | 7.9m | 8.1m |
| Width | 1.75m | 1.75m | 2m | 2.38m |
| Wheel Base | 2m | 2m | 2m | 2m |
| Ground clearance center | 200mm | 200mm | 200mm | 200mm |
| Horizontal reach maximum | 7.6m | 7.6m | 7.6m | 7.6m |
| Lift capacity | 230kg | 230kg | 230kg | 230kg |
| Turning radius (outside) | 4.5 m | 4.5 m | 4.5 m | 4.5 m |
| Turntable Swing | 360°continuous | 360°continuous | 360°continuous | 360°continuous |
| Speed of Turntable Swing | 0～1/3rpm | 0～1/3rpm | 0～1/3rpm | 0～1/3rpm |
| Leveling mode | Automatic | Automatic | Automatic | Automatic |
| Platform rotation | 180° | 180° | 180° | 180° |
| Tire | 250-15 solid tire | 250-15 solid tire | 250-15 solid tire | 250-15 solid tire |
| Hydraulic oil tank capacity | 70L | 70L | 70L | 70L |
| Weight | 6500kg | 6780kg | 7110kg | 7650kg |
| Travel speed Stowed | 5km/h | 5km/h | 5km/h | 5km/h |
| Travel speed Raised or extended | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| Grade ability | 30% | 30% | 30% | 25% |
| Drive and turn mode | 2WD×2×2 | 2WD×2×2 | 2WD×2×2 | 2WD×2×2 |
| Battery | 48/420Ah TROJAN | 48/420Ah TROJAN | 48/420Ah TROJAN | 48/420Ah TROJAN |
| Travel electric motor | 2×6.5kW/SME | 2×6.5kW/SME | 2×6.5kW/SME | 2×6.5kW/SME |
